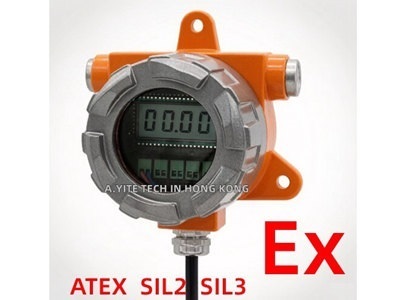

ATEX Air Pressure Transmitter Explosion Proof Differential Sensor

ATEX Explosion Proof
SIL2 SIL3 certificate
CE certificate
Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃)
Product description: GE-923-Ex air differential pressure transmitter is manufactured with micro pressure sensing technology, and the pressure range is from 0~±25Pa to 100KPa. ATEX explosion-proof SIL2 SIL3 suitable for Eu

Product introduction

The GE-923-Ex air micro differential pressure transmitter is manufactured with micro pressure sensing technology, and the pressure range is from 0~±25Pa to 10000KPa. With one-way and two-way pressure range, LCD display, 4-20mA output or RS-485 signal. Can be dust or gas explosion-proof, with explosion-proof certificate, ATEX explosion-proof suitable for European and American markets. High temperature and low temperature resistant products can be customized. Applicable to: clean rooms, isolation rooms, ventilation systems, energy management systems, leak detection, wind speed measurement, medical and testing instruments, furnace pressure tests, etc.

1. Medium: air or other non-corrosive gas

2. Differential pressure range: 0-25pa-100Pa-1000Pa-2KPa-3KPa-5KPa-10KPa........50KPa

The range can be arbitrarily selected in size or range, positive pressure, negative pressure, positive and negative pressure, customized according to user needs

3. Can withstand static pressure: 5 x Max Range

4. Power supply: 24 VDC

5. Output signal: 4-20mA(2-wire), 0-5V(3-wire); 0-10V(3-wire) or RS-485

6. Protection level: IP66

7. Video display (optional): 4-digit LCD

8. Working environment temperature: -20C ~ 70C
